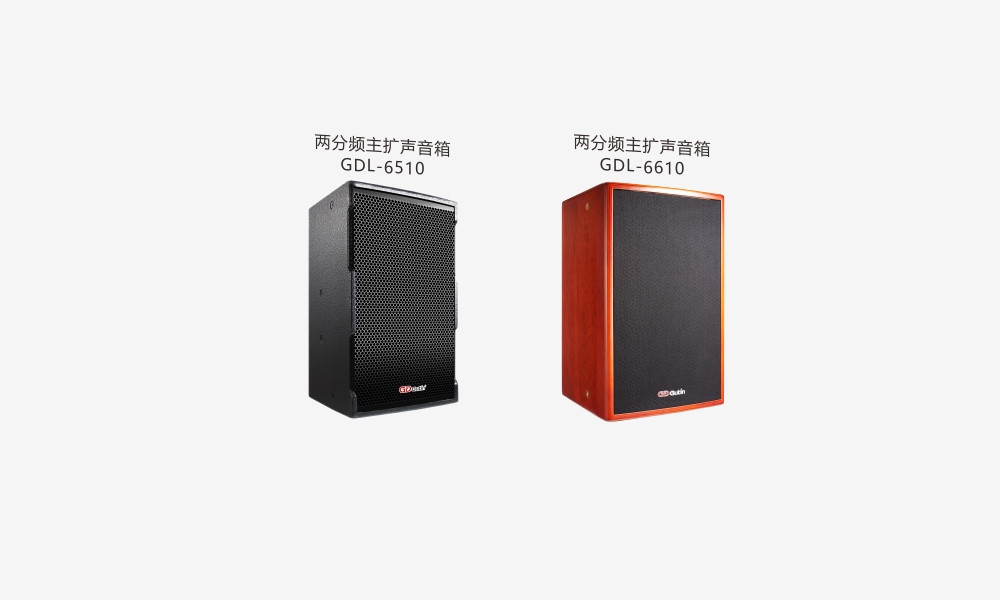

GDL-6510.6610两分频主扩声音箱
GDL-6510.6610 two-way main PA loudspeaker
GDL系列10寸音箱是一款结构紧凑、高输出、重量轻的两分频全频音箱系统。大面积的波导管设计提供优越80×50度覆盖角度，因此该扬声器系统能在水平或者垂直方向定向安装。高斜率衰减的无源分频器能限度地减少频段重叠。低频能量充足，中高频洪亮细腻，声音表现清晰自然，轻松应付中小型室内扩声要求。GDL series 10-inch two-way PA speaker configured with big area waveguide providing 80×50 coverage angle for easy installation in horizontal or vertical orientation. Passive frequency divider with high slope attenuation can limit band overlap. It offer a powerful deep bass, a bright and dedicate details on center-treble.
———————————————————————————–
应用场合 Application
练歌房、KTV、会议室、多功能厅、中小型室内演出… KTV, conference room, multi-function hall, Small-to-mid sized performance indoors …
———————————————————————————–
参数表 parameter
类型：二路全频音箱 /额定功率 (RMS)：350W /负载阻抗：8 ohms /频响响应：45Hz-18kHz /灵敏度：98dB (1W/1m) /单元组成：1×10英寸低音单元, 1×1.4寸高音驱动单元 /表面处理： GDL-6510: 黑色防水浮点漆 GDL-6610: 红色亚光漆 /吊挂点：M5爆炸螺丝钉 /箱体尺寸： 宽297×高476×深313mm /重量：13Kg（只） Type: Two-way full range speaker /RMS power: 350W /Load impedance: 8 ohms /Frequency response: 45Hz-18kHz /Sensibility: 98dB (1W/1m) /Drive units：1×10 inch bass, 1×1.4 inch treble /Hanging point：M5 explosion screw /Size：Width 297×Height 476×Depth 313mm /Weight：13Kg（one unit）
———————————————————————————–
资源下载 Download
★GDL-6510.6610音箱部分案例 ★GDL-6510.6610音箱操作及技巧 ★GDL-6510.6610用户说明书
———————————————————————————–
