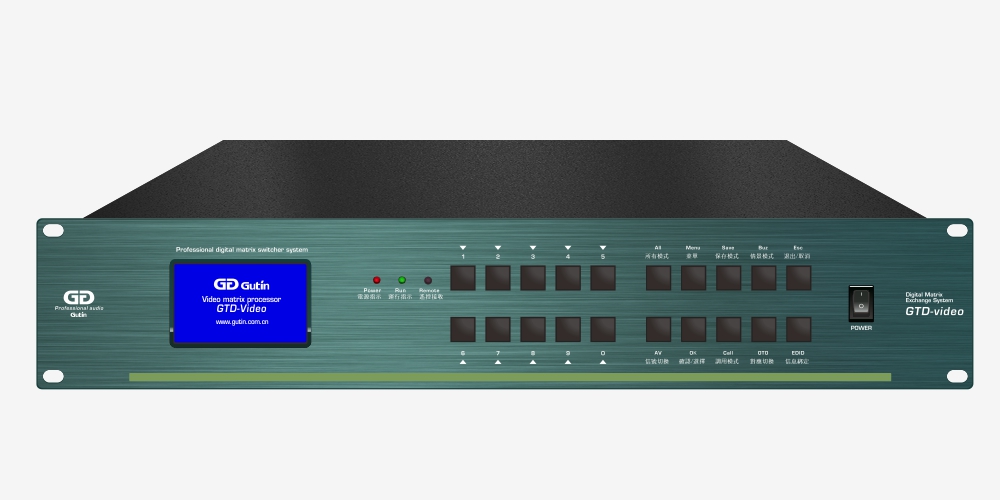

GTD- video插卡混合视频图像矩阵处理器
Digital sound efficiency processor
实现视频图像的输入输出无缝矩阵切换，无黑屏，无延时，无卡顿现象。FPGA+ARM架构，以高稳定高带宽 FPGA 纯硬件架构为基础，采用功能化模块化板卡的硬件设计。模块化插卡式设计，业务卡均采用插卡式设计，为日常使用及维护带来了极大的方便。Video image input and output seamless matrix switch, functional modular board card hardware design, based on high stability and high bandwidth FPGA+ARM pure hardware architecture, for daily use and maintenance.
———————————————————————————–
参数表 parameter
支持480p, 720p, 1080i, and 1080p、4K@30HZ分辨率。支持HDMI 1.3a、HDCP 1.3、与及DVI 1.0协议，支持高色深，以及高达2.25Gbps速率；电源 110-220VAC, 50/60 Hz；功率 50W-100W；使用温度: -20°- +70°C；使用湿度:10% -90%；机箱尺寸 48cm x 30cm x 17.6 cm Resolution: 480p, 720p, 1080i, and 1080p、4K@30HZ /Protocol: HDMI 1.3a, HDCP 1.3, DVI 1.0 /Rate: 2.25Gbps /Power supply: 110-220VAC, 50/60 Hz /50W-100W /Temperature: -20°- +70°C /Humidity: 10% -90% /Dimension: 48cm x 30cm x 17.6 cm
———————————————————————————–
资源下载 Download
★GTD-Video视频矩阵部分案例 ★GTD-Video视频矩阵操作及技巧 ★GTD-Video视频矩阵用户说明书
———————————————————————————–
声明 Statement
谷田产品经已申请国家技术及外观专利已经多达几十项、严禁进行任何形式的仿制、改装并用于销售、复制、改编或翻译，除非版权法另有规定，任何抄袭及仿造等侵犯知识产权的做法将会受到法律制裁。 Gutin products have already applied for dozens of national technology and appearance patents, and are strictly prohibited from any form of imitation, modification and sale, copying, adaptation or translation unless the copyright law otherwise provides for any infringement of intellectual property such as plagiarism and counterfeiting. The practice will be punished by law.
