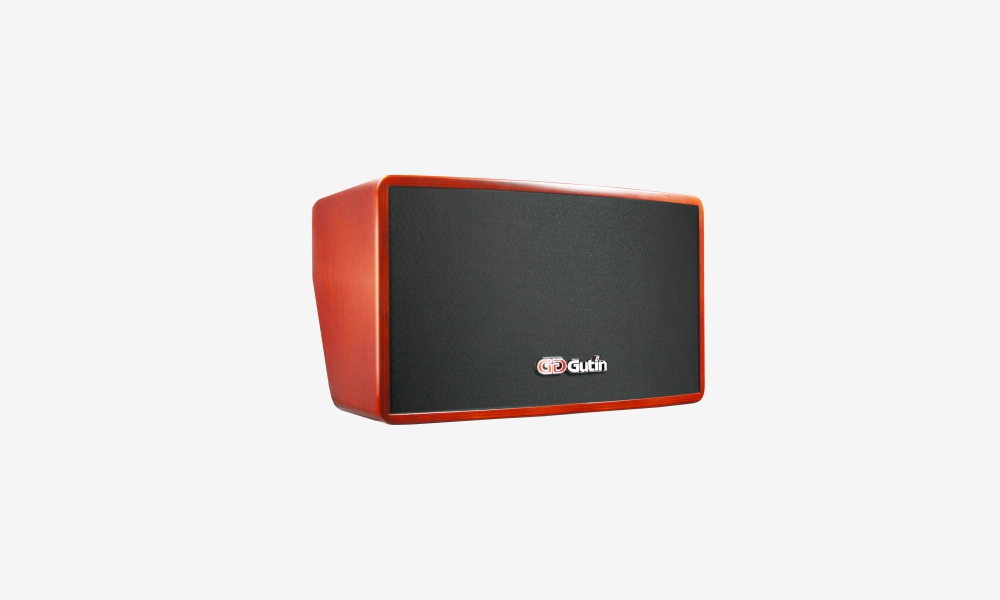

HS-660辐射式三分频音箱
HS-6 Radiating three-way loudspeaker
外观采用大气耐看的复古红木色，水晶钢琴般的质感，无论是放在任何场合，都能彰显主人不凡的文化修养。前倾式的结构设计让音箱能贴合墙面安装，具有很好刚性和优良的机械阻尼特性，声音更加自然准确，相位更精准，频带衔接自然平滑，让您在欣赏影片和音乐时彻底感受声音的生命力！HS-660-THX is three-way cinema speaker coated with crystal-like vintage mahogany.The forward-tilted structure easily fits the wall surface, thus showing a huge dynamic and more precise phase.All of which makes you feel the vitality of the sound while enjoying the film and music!
———————————————————————————–

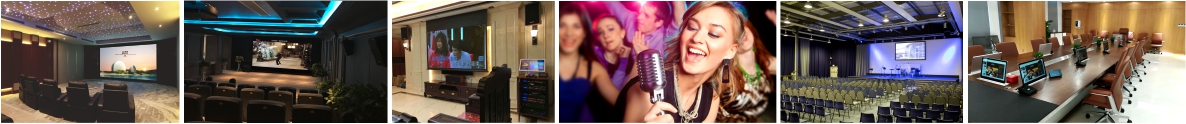

应用场合 Application
多声道数字电影院、私家影院、练歌房、影K系统、KTV量贩、多功能厅、会议室… Small-to-mid sized multi-channel digital cinema, Private cinema, Company entertainment hall, Movie & karaoke system, KTV, Mini Live show, multi-function hall, Banquet, conference room…
———————————————————————————–
参数表 parameter
类型：三路全频音箱 /额定功率 (RMS)：250W /负载阻抗：8 ohms /频响响应：60Hz-18kHz /灵敏度：96dB (1W/1m) /单元组成：1×10英寸低音单元, 2×3.4寸中音驱动单元, 2×3.4寸压缩高音驱动单元 /表面处理：红木色亚光漆 /吊挂点：M5爆炸螺丝钉 /箱体尺寸：宽530×高320×深300mm /重量：10.9Kg（只） Type: Three-way full range speaker /RMS power:250W /Load impedance: 8 ohms /Frequency response: 60Hz-18kHz /Sensibility: 96dB (1W/1m) /Drive units：1×10 inch bass, 2×3.4 inch middle, 2×3.4 inch treble /Hanging point：M5 explosion screw /Size：Width530×Height 320×Depth 300mm /Weight：10.9Kg（one unit）
———————————————————————————–
资源下载 Download
★HS-660-THX系列音箱部分案例 cases ★HS-660-THX系列音箱操作及技巧 skills ★HS-660-THX系列音箱用户说明书 instruction
———————————————————————————–
声明 Statement
谷田产品经已申请国家技术及外观专利已经多达几十项、严禁进行任何形式的仿制、改装并用于销售、复制、改编或翻译，除非版权法另有规定，任何抄袭及仿造等侵犯知识产权的做法将会受到法律制裁。 Gutin products have already applied for dozens of national technology and appearance patents, and are strictly prohibited from any form of imitation, modification and sale, copying, adaptation or translation unless the copyright law otherwise provides for any infringement of intellectual property such as plagiarism and counterfeiting. The practice will be punished by law.
