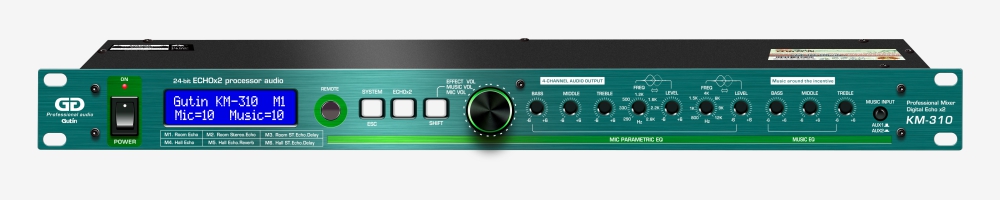

KM-310演唱级数模双工音效器
Digital analog ECHOx2 Sound Processor
谷田团队运用先进的模拟技术再次升级电子线路，打造拥有90年代卡包味道的KM-310！和以往的单芯片效果不同，KM-310采用双核效果芯片ECHO×2，立体声场更加清晰！能把人声与音乐更好地融合在一起，仿佛您就是歌星！这款效果器还增加话筒参量均衡、音乐中频调节，升级了防啸叫电路，方便搭配不同风格的音箱系统。直观的LCD液晶显示屏，参数调节一目了然。不得不重新审视这台KTV效果器，它带来的整体感觉真的非常到位！人声是那么亲切，效果跟踪是那么紧凑，音乐是那么耐听，这不是您正要找的效果器吗？With double upgrades appraoch to electronic circuit, Gutin developed KM-310 with karaoke flavor popular in 1990’s! However, KM-310 equipped with a dual-core effect chip ECHO×2, which differ in the previous single-chip effects and make the stereo field clearer! Furthermore, better integrate human voice and music, as if you were a singer! KM-310 also increases the microphone parameters, music center frequency adjustment, upgrades anti-feedback circuit, easy to match with different styles of speaker system. Intuitive LCD display, parameter adjustment at a glance. Having to re-examine this sound processor, the overall feeling it brings is really in place! The vocals are so cordial, the effect tracking is so compact, the music is so resistant, isn’t this the sound processor you are looking for?
应用场合 Application
录音室、练歌房、KTV、会议室、多功能厅、中小型演出… recording room, KTV, conference room, multi-function hall, small and medium performance…
参数表 parameter
话筒频率响应：20 Hz to 30 kHZ /总谐波失真0.005{55d90f6e10dd53a604847935504a1f144a5ef70988b231f556198c34bd07d453}/噪音<-80dB /FBE 防啸叫开关/线路输入连接器:Line input RCA接头 /输入阻抗：56K ohms /输入最大电平+18 dBu unbalanced /频率响应：20 Hz to 50 kHz, +/-1 dB (max/min) /总谐波失真0.004{55d90f6e10dd53a604847935504a1f144a5ef70988b231f556198c34bd07d453} /输出连接器XLR & 1/4TRS 平衡/非平衡 /输出阻抗100 ohms /输出最大电平+18 dBu/消耗功率15W／电源240V-50..60Hz／尺寸大小483x44x157mm (19″X1.75″x6.2″) ／重量3kg(6.6bs)Microphone Frequency Response: 20 Hz to 30 kHZ / Total Harmonic Distortion 0.005{55d90f6e10dd53a604847935504a1f144a5ef70988b231f556198c34bd07d453} / Noise <-80 dB / FBE Anti-whistle switch / line input connector: Line input RCA connector / input impedance: 56K ohms / input maximum level +18 dBu unbalanced / Frequency Response: 20 Hz to 50 kHz, +/-1 dB (max/min) / Total Harmonic Distortion 0.004{55d90f6e10dd53a604847935504a1f144a5ef70988b231f556198c34bd07d453} / Output Connector XLR & 1/4TRS Balanced / Unbalanced / Output Impedance 100 ohms / Maximum Output Level +18 dBu/Power Consumption 15W/Power Supply 240V-50..60Hz/Size 483x44x157mm (19″X1.75″x6.2″) / Weight 3kg (6.6bs)
资源下载 Download
★KM-310部分案例 cases ★KM-310软件及操作 skills ★KM-310用户说明书 instruction
