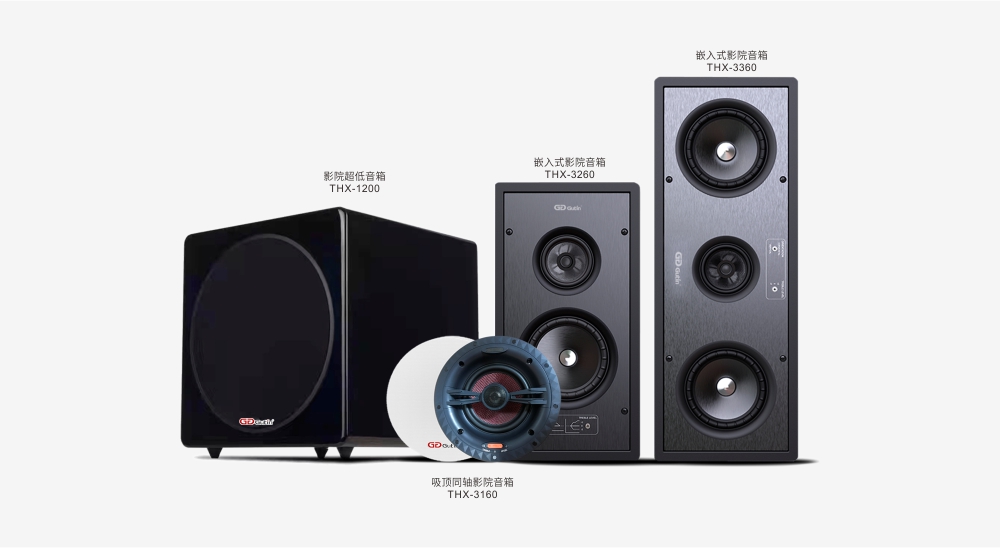

THX-13系列私影客厅定制影院音箱
THX-13 private cinema loudspeaker
私人定制高品质影院级音箱，采用超薄箱体增强式设计，经过Gutin经验丰富的工程师精心调校而成。纤薄的设计可降低深度，即使在狭窄的墙壁之间或天花板背面也能安装。实现清晰、清晰的高音域；采用聚纤维素锥体，重量轻，韧性强。Custom-made high quality cinema grade speakers are designed with ultra-thin box reinforcement and carefully tuned by Gutin’s experienced engineers. The thin design reduces depth and allows installation even between narrow walls or behind ceilings.
———————————————————————————–
参数表 parameter
THX-3360 嵌入式双6.5寸四分频音箱 Embedded dual 6.5 inch loudspeaker
类型：专业四分频音箱 /额定功率 (RMS)：195W /负载阻抗：8 ohms /频响响应：80Hz-20kHz /灵敏度：90dB (1W/1m) /单元组成：2×6.5英寸低音单元, 1×4寸中音单元，1x钛膜高频驱动器 /开孔尺寸：宽227×高659×深95mm /箱体尺寸：宽227×高698×深104mm Type: Four-way frequency speaker /RMS power: 195W /Load impedance: 8 ohms /Frequency response: 80Hz-20kHz /Sensibility: 90dB (1W/1m) /Drive units：2×6.5 inch bass, 1×4 inch mid, 1x treble /Opening Size：Width 227×Height 659×Depth 95mm /Size：Width 227×Height 698×Depth 104mm
THX-3260 嵌入式单6.5寸三分频音箱 Embedded 6.5 inch loudspeaker
类型：专业三分频音箱 /额定功率 (RMS)：165W /负载阻抗：8 ohms /频响响应：80Hz-20kHz /灵敏度：90dB (1W/1m) /单元组成：1×6.5英寸低音单元, 1×4寸中音单元，1x钛膜高频驱动器 /开孔尺寸：宽227×高455×深95mm /箱体尺寸：宽227×高495×深104mm Type: Three-way frequency speaker /RMS power: 165W /Load impedance: 8 ohms /Frequency response: 80Hz-20kHz /Sensibility: 90dB (1W/1m) /Drive units：1×6.5 inch bass, 1×4 inch mid, 1x treble /Opening Size：Width 227×Height 455×Depth 95mm /Size：Width 227×Height 495×Depth 104mm
THX-3160 吸顶单6.5寸二分频音箱 Ceiling 6.5 inch loudspeaker
类型：专业二分频音箱 /额定功率 (RMS)：135W /负载阻抗：8 ohms /频响响应：85Hz-20kHz /灵敏度：89dB (1W/1m) /单元组成：1×6.5英寸低音单元, 1x钛膜高频驱动器 /开孔尺寸：直径211.5×高114mm /箱体尺寸：直径236.5×高118mm Type: Two-way frequency speaker /RMS power: 135W /Load impedance: 8 ohms /Frequency response: 85Hz-20kHz /Sensibility: 89dB (1W/1m) /Drive units：1×6.5 inch bass, 1x treble /Opening Size：Diameter211.5×Height 114mm /Size：Diameter236.5×Height 118mm
THX-1200 超低音箱 Subwoofer
类型：超低频音箱 /额定功率 (RMS)：350W /负载阻抗：4 ohms /频响响应：25Hz-170Hz /灵敏度：90dB (1W/1m) /单元组成：1×12英寸低音单元 /箱体尺寸：宽380×高390×深405mm Type: Ultra bass speaker /RMS power: 350W /Load impedance: 4 ohms /Frequency response: 25Hz-170Hz /Sensibility: 90dB (1W/1m) /Drive units：1×12 inch bass /Size：Width 380×Height 390×Depth 405mm
———————————————————————————–
资源下载 Download
★THX-13系列音箱部分案例 cases ★THX-13系列音箱操作及技巧 skills ★THX-13系列音箱用户说明书 instruction
———————————————————————————–
