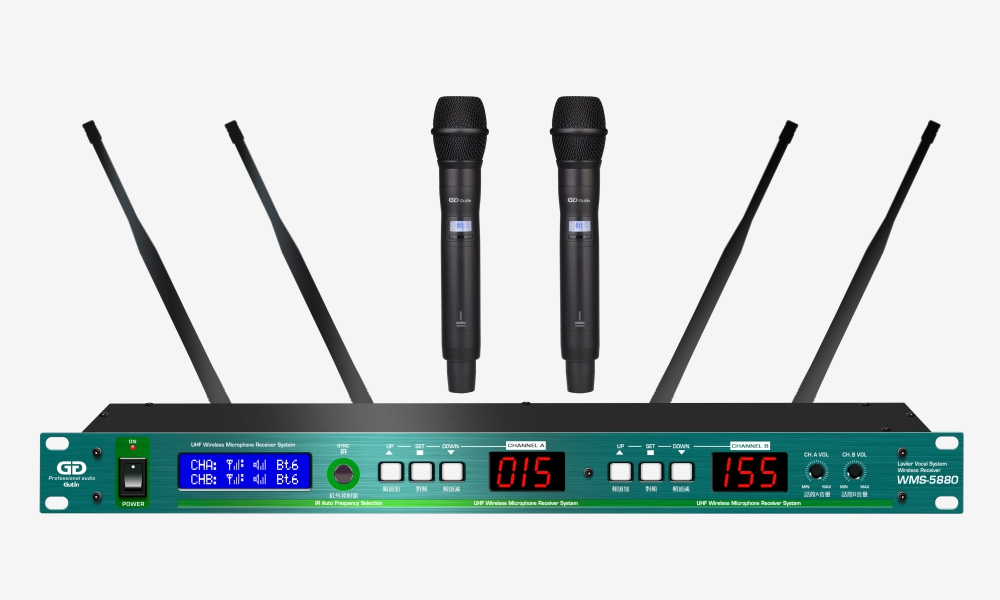

WMS-5880智能真分集无线话筒
Smart True Diversity Wireless Microphone
邀请台湾高频无线工程师参与研发工作，稳定性与声音品质有大幅度的提升。具有清晰语音表现的人声套装包括超心形指向性人声话筒，智能双调谐真分集接收主机。听得更清楚表现更杰出，将分集式接收器中的信号做了精确和忠实地重制。200个频道可调UHF频率，避免接收被干扰。强化的AF频率范围，使用接收距离大幅度提升，采用数字导频技术，融入了谷田研发团队8年研究的经典话筒放大技术，GXHD压缩扩展器获得水晶般清透的声音。自动锁定功能，避免设置被意外更改。Hyperheart-shaped directional voice microphone, intelligent dual tuned true diversity receiver. 200 channels can be adjusted to UHF frequency to avoid interference in reception. Digital pilot technology, integrated with Gutin research and development team of 8 years of classical microphone amplification technology, GXHD compression expander. Automatic lock function prevents Settings from being accidentally change.
———————————————————————————————————————————-
参数表 parameter
LCD显示屏接收主机 /数位显示管 /支持无线手持、无线腰包、无线会议鹅颈话筒 /主机支持通信端口、抗干扰电源滤波 /频率范围: 640.00-690.00MHz/信道数量 200 信道/频率范围：640-690MHz /振荡方式：锁相环频率合成（PLL）/导频方式：智能数字导频 /频率响应: 40Hz-18KHz /谐波失真：≤0.5% /信噪比：≥100dB /音频输出：平衡输出和混合输出 /发射功率：3-30mW /调制方式：调频（FM）/供电2节5号电池 /电源规格：90-240V/50-60Hz/净重 3.6kg /本机功耗13.5W /其他：5880没有自动静音功能，不带落地静音功能！ LCD reciever /Digital display tube /Frequency Range: 640.00-690.00MHz /Numbers of channel: 200 /PLL /Digital piot /Frequency Response: 40Hz-18KHz / S/N Ratio: ≥100dB /Harmonic distortion: ≤0.5% /Transmitting power: 3-30mW /FM /A pair of AA battery /Net weight: 3.6kg /Input Voltage: 90V~240V 50/60hz /Output Power: 13.5W
———————————————————————————————————————————-
资源下载 Download
★WMS-5880部分案例 cases ★WMS-5880操作及技巧 skills ★WMS-5880用户说明书 instruction
———————————————————————————–
