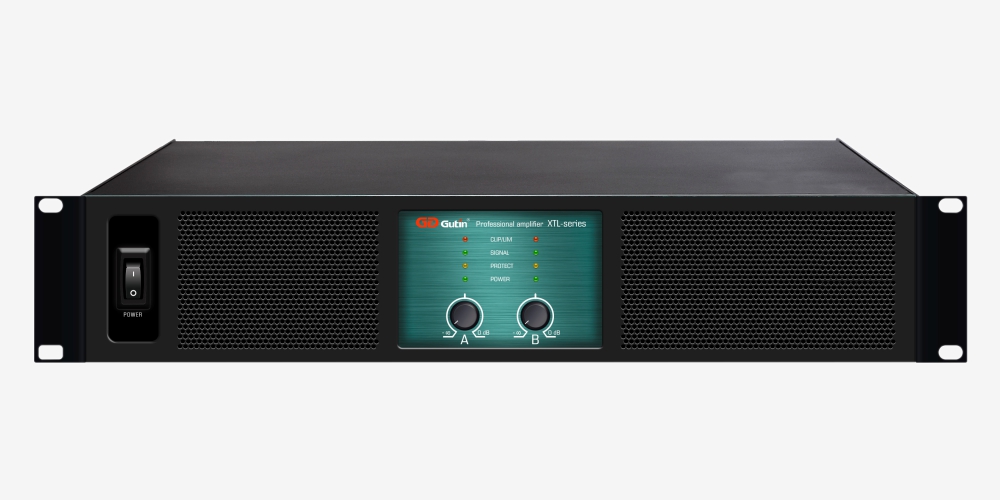

XTL-3620两声道商用级功率放大器
Commercial power amplifier

谷田音频（Gutin Audio LAB 新作XTL系列专业级功放，采用GT-AIR 空气导流技术，革命性的技术改进，将为整个大功率功放机的散热困扰带来了新的技术导向，必将引起业界的轰动。XTL系列拥有强大的性价比与市场竟争力，鉴于大部分场合机柜空间狭小以及方便移动使用，GT-AIR 空气导流技术成功解决紧凑的结构设计的瓶颈。基于Gutin Audio LAB平台专业音频研发技术，保持高音质水平的同时，采用了简洁而高效的放大线路，升级后的高效率散热系统设计，保证了产品的稳定性。Adopting of GT-AIR cooling technology, XTL-3620 is the high quality professional power amplifier which provides new guidance on heat dissipation of high-power amplifiers.The upgraded high-efficiency heat-dissipation system has further enhanced its stability, and its sound quality has been greatly improved.

———————————————————————————–

参数表 parameter

两声道输出功率600Wx2（8Ω) /频率响应20H~20kHz(+0/-1dB) /电压增益≥35dB /总谐波失真≤0.08% /阻尼系数≥250 /输入阻抗：平衡（balance）20kΩ，非平衡（unbalance）10kΩ /信噪比≥103dB /电源：180~240V-50..60Hz /冷却：变速风扇（空闲慢速），气流从前到后 /功放保护：具有短路，开路，过热，超音频和射频保护装置能平稳地和电抗性负载货不匹配负载相接/动态自动现付保护 /当输出失真超过0.1时发出警告 /尺寸大小：483x88x320mm /重量：12kg（只） The two-channel output 600Wx2（8Ω)/Frequency response: 20H~20kHz(+0/-1dB) /Voltage-gain≥35dB /THD≤0.08% /Damping ≥250 /Input impedance：balance @20kΩ，unbalance @10kΩ /SNR ≥103dB /Power source：180~240V-50..60Hz /cooling：Variable speed fans (idle slow), the airflow after by the former /PA protection：The company has always maintained the highest level of professionalism,Therefore improvement of existing products, you can not advance notice,List or icon a difference In products of the technical data and product appearance. /Size：483x88x320mm /Weight：12kg

———————————————————————————–

资源下载 Download

★XTL-3620商用级功放部分案例                ★XTL-3620商用级功放操作及技巧             ★XTL-3620商用级功放用户说明书

———————————————————————————–
